A crane VFD must be selected according to the lifting duty, motor current, braking requirements and control system.
A standard industrial drive and a lifting-dedicated drive may have different control functions, so the equipment should be evaluated against the actual crane application.
Reference Scenario: Industrial Material Handling

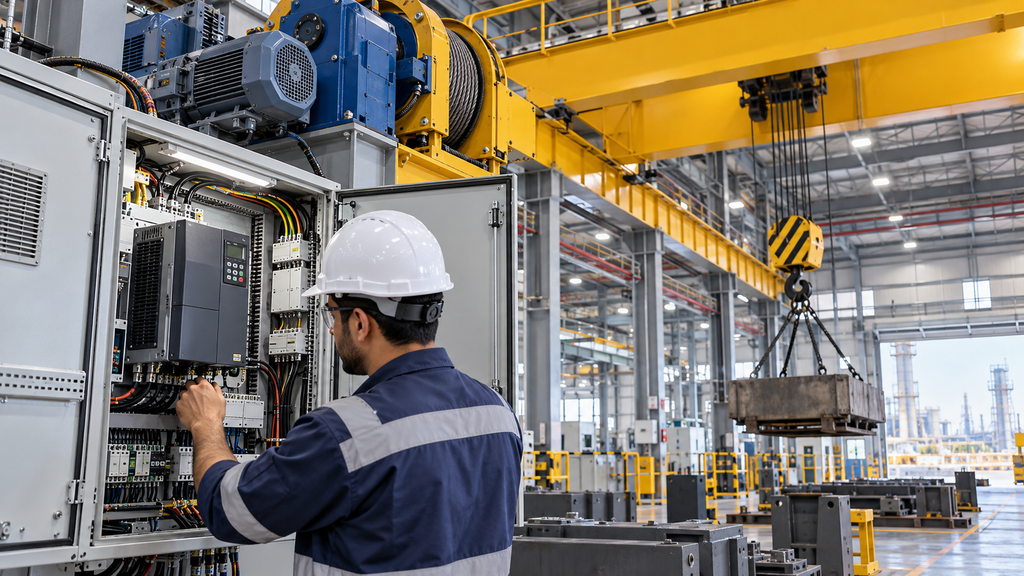

Consider an industrial facility in Kuwait using an overhead crane with a three-phase, 380V, 15kW lifting motor.
The existing drive needs replacement, and the maintenance contractor wants to review the motor-control and brake-control arrangement.
The contractor must collect the lifting capacity, operating duty cycle, motor characteristics and existing control-panel information before proposing a replacement.
Evaluating the IDEEI S700
The IDEEI S700 lifting-dedicated VFD includes a 15kW model in its 380V three-phase product range.
The 15kW model has a listed rated output current of 32A. The actual motor current and lifting-duty requirements must be checked against this rating.
The S700 platform provides lifting-oriented control functions, including mechanical brake timing and multiple motor-control modes.
However, the complete lifting system still requires properly designed mechanical brakes, independent safety devices, limit switches and an appropriate control arrangement.
Before selection, confirm whether encoder feedback, specific communication interfaces or additional process-control accessories are required.
Start with the operating duty
For a 15 kW industrial crane hoist in Kuwait, write down what the equipment must accomplish over a complete working day before choosing a power rating. Record load chart, lifting duty, cycle frequency and motor nameplate. A single motor kilowatt figure does not establish duty, performance or the required controls. Ask the owner and site engineer to distinguish measured values from estimates. When an existing machine is being replaced, keep photographs of the nameplate, the previous controller and the wiring diagram. If the system is new, obtain the relevant mechanical or hydraulic design. These inputs allow a supplier to identify assumptions clearly and prevent a quotation from quietly treating an unknown requirement as a confirmed specification.
Electrical compatibility is a model-level decision
Confirm the motor’s rated voltage, current, frequency, speed and connection, then compare each item with the proposed crane VFD model. Check 32 A listed rated output current for the 15 kW S700, subject to motor and duty verification. The exact model number and its manual matter more than a family name: options can differ in input range, output current, terminals, protection class and accessories. The installation engineer should also document supply quality, earthing, available protection and cable lengths. A motor and drive can display the same nominal kilowatt rating while still being electrically incompatible. Do not approve procurement until the supplier has checked the nameplate against the particular unit offered and listed any required external components.
Build a measurable acceptance test
Turn the project’s objectives into testable acceptance criteria. For a 15 kW industrial crane hoist in Kuwait, the test should cover normal startup, steady operation, controlled stopping and the consequences of losing a power source or a control signal. Record current, operating frequency, relevant pressure or speed, and any fault indications during a supervised trial. Agree who measures these values and where they will be recorded. A successful bench test at the supplier does not prove performance at the final site because cable runs, ambient conditions and the connected machine differ. A first-unit trial can reveal interface issues before the buyer orders a larger batch.
Plan the controls as a complete system
The control scope needs an explicit wiring and responsibility diagram. Address mechanical brake sequence, limit switches and independent safety systems. A drive may expose inputs and software functions, but that does not mean sensors, relays, cabinets or external safety devices are included in the quoted unit price. Agree on the normal operating sequence, each stop condition, reset rules and the response to a broken sensor wire. Decide whether an alarm needs a local indicator or remote notification. Safety devices required by the complete machine or installation should be designed and validated independently by qualified personnel. Documenting these interfaces before shipment reduces costly rewiring on site.
Account for the installation environment
Ask for the installation location, altitude, maximum ambient temperature, dust or moisture exposure, and available ventilation space. Enclosure protection belongs to the exact assembly being sold; an indoor inverter is not automatically suitable for a wet outdoor wall. A sealed cabinet may require a thermal review because a running drive dissipates heat. Cable entries, grounding, surge protection and maintenance access should be drawn on the installation plan. If the site is exposed to salt, flooding or direct sun, specify those hazards rather than relying on a generic description such as outdoor use. Confirm who supplies the cabinet and who certifies its finished protection rating.
Lifting duty and braking energy
A 15kW crane hoist can create regenerative energy during lowering, so the engineer must verify the braking method, resistor selection and heat dissipation for the actual duty cycle. Record the lifting capacity, motor rated current, number of starts and stops, lowering speed and whether more than one motor shares the drive. Confirm the 32A listed output rating against the motor nameplate and required overload behavior. Define the sequence between drive torque and the mechanical brake so that a suspended load cannot move unexpectedly. Limit switches, emergency stop and overload protection belong to the complete lifting system and must be validated independently. The electrical supply and cabinet cooling should also be checked at the installation site.
Prepare procurement information
A useful request for quotation should contain the machine nameplate, the site description, quantities, delivery location and the scope expected from IDEEI. Include load chart, lifting duty, cycle frequency and motor nameplate. Ask the supplier to itemize the main unit, control accessories, sensors, interface boards, protective devices, cabinet and optional spare parts. If an item will be purchased locally, identify the exact specification and connection responsibility. Request the applicable datasheet, user manual and wiring diagram for the proposed variant. Confirm the agreed commercial term and which party handles freight, import clearance, taxes and inland delivery. This makes quotations from several suppliers genuinely comparable.
Commissioning and maintenance records
Before energizing the equipment, the installer should check insulation, polarity where relevant, protective earth, terminal assignments and mechanical readiness. Save a parameter backup and a dated commissioning record containing the model and serial number. Test each intended protective response with the machine under controlled conditions; record the results instead of assuming the default settings are adequate. Establish a routine for cleaning filters and enclosures, checking terminal condition and reviewing fault history. A remote supplier can troubleshoot much faster when the operator can supply measured currents, photographs and alarm codes. Only qualified personnel should modify safety-related wiring or operate the system during tests.
Questions buyers should settle before ordering
Can the selected rating run the motor? Only a check of motor current, duty and the exact model can answer that.
Does the quotation include a complete installed system? Only if the written scope lists the additional components and work.
Will the proposed configuration perform at the site? That depends on the measured conditions and commissioning results, so use a documented acceptance test.
Can the buyer reuse existing equipment? The interfaces and safety design must be checked individually.
Ask IDEEI for a written compatibility review based on the site documents; do not treat this reference scenario as proof that a project has already been delivered.
Procurement and Commissioning
Send the motor nameplate, lifting capacity, existing drive model, brake specifications, control-panel drawings and installation conditions.
The supplier should confirm the exact model, required accessories and technical documentation before shipment.
Installation and commissioning must be performed by qualified personnel, including verification of brake operation and all applicable lifting safety functions.
Request a 15kW S700 selection review for your crane or lifting equipment project.
