For an elevator replacement project, selecting a drive solely by motor kW can lead to compatibility problems.
The contractor should verify the existing motor, encoder, braking system, control signals and available cabinet space before ordering a replacement inverter.
Reference Scenario: Elevator Maintenance in Dubai

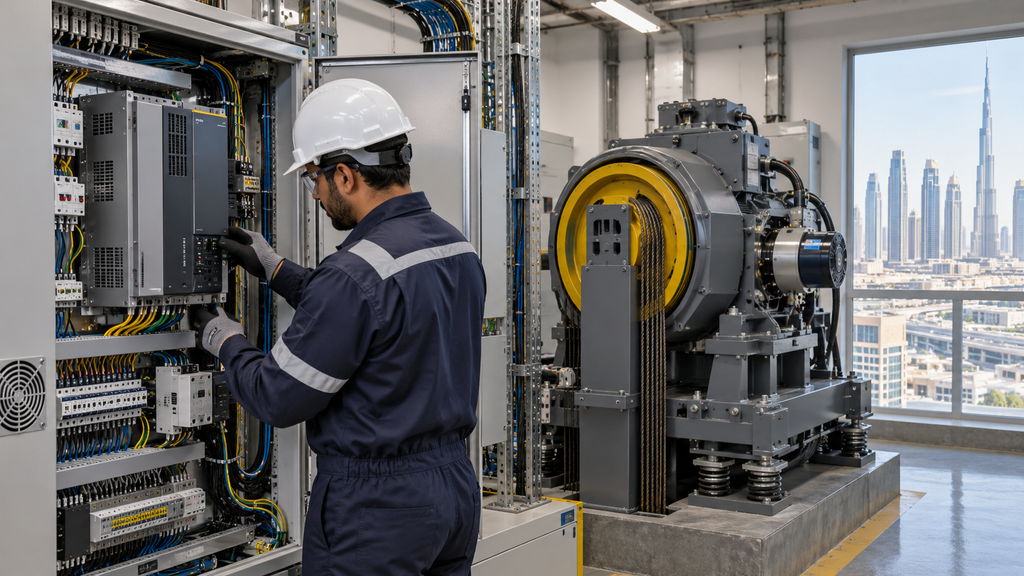

Consider an elevator maintenance company in Dubai servicing a building with a three-phase, 380V, 7.5kW traction motor.
The existing elevator drive needs replacement.
The maintenance company wants to evaluate a new closed-loop inverter while preserving compatible parts of the original system.
Technical Compatibility Review
The IDEEI 11LIFT 7.5kW closed-loop elevator inverter can be evaluated for a compatible motor and control system.
The contractor must confirm the motor’s rated current, encoder type and feedback signal.
The matching PG card, braking resistor, brake-control arrangement and communication interfaces also require verification.
Before commissioning, the contractor should document the existing drive parameters and wiring assignments.
A replacement inverter may use different terminals or control logic, so the wiring must not be transferred without technical verification.
Start with the operating duty
For a 7.5 kW elevator drive replacement in the UAE, write down what the equipment must accomplish over a complete working day before choosing a power rating. Record traction motor nameplate and original parameter backup. A single motor kilowatt figure does not establish duty, performance or the required controls. Ask the owner and site engineer to distinguish measured values from estimates. When an existing machine is being replaced, keep photographs of the nameplate, the previous controller and the wiring diagram. If the system is new, obtain the relevant mechanical or hydraulic design. These inputs allow a supplier to identify assumptions clearly and prevent a quotation from quietly treating an unknown requirement as a confirmed specification.
Electrical compatibility is a model-level decision
Confirm the motor’s rated voltage, current, frequency, speed and connection, then compare each item with the proposed closed-loop elevator VFD model. Check encoder signal, PG card, brake circuit and cabinet wiring. The exact model number and its manual matter more than a family name: options can differ in input range, output current, terminals, protection class and accessories. The installation engineer should also document supply quality, earthing, available protection and cable lengths. A motor and drive can display the same nominal kilowatt rating while still being electrically incompatible. Do not approve procurement until the supplier has checked the nameplate against the particular unit offered and listed any required external components.
Build a measurable acceptance test
Turn the project’s objectives into testable acceptance criteria. For a 7.5 kW elevator drive replacement in the UAE, the test should cover normal startup, steady operation, controlled stopping and the consequences of losing a power source or a control signal. Record current, operating frequency, relevant pressure or speed, and any fault indications during a supervised trial. Agree who measures these values and where they will be recorded. A successful bench test at the supplier does not prove performance at the final site because cable runs, ambient conditions and the connected machine differ. A first-unit trial can reveal interface issues before the buyer orders a larger batch.
Plan the controls as a complete system
The control scope needs an explicit wiring and responsibility diagram. Address qualified commissioning and independent safety checks. A drive may expose inputs and software functions, but that does not mean sensors, relays, cabinets or external safety devices are included in the quoted unit price. Agree on the normal operating sequence, each stop condition, reset rules and the response to a broken sensor wire. Decide whether an alarm needs a local indicator or remote notification. Safety devices required by the complete machine or installation should be designed and validated independently by qualified personnel. Documenting these interfaces before shipment reduces costly rewiring on site.
Account for the installation environment
Ask for the installation location, altitude, maximum ambient temperature, dust or moisture exposure, and available ventilation space. Enclosure protection belongs to the exact assembly being sold; an indoor inverter is not automatically suitable for a wet outdoor wall. A sealed cabinet may require a thermal review because a running drive dissipates heat. Cable entries, grounding, surge protection and maintenance access should be drawn on the installation plan. If the site is exposed to salt, flooding or direct sun, specify those hazards rather than relying on a generic description such as outdoor use. Confirm who supplies the cabinet and who certifies its finished protection rating.
Supply, encoder feedback and rescue interfaces
A replacement elevator VFD must match the available supply and the existing traction system’s signals. Record the original drive’s motor parameters, encoder type, pulse characteristics, brake timing and terminals before disconnection. Ask whether the lift has an automatic rescue device or backup supply and verify how that equipment communicates with the proposed inverter. The maintenance contractor should identify any required PG card, braking resistor and contactors in the quotation. Commissioning should cover direction, leveling, brake release and engagement, fault response and emergency operation under qualified supervision. A matching 7.5kW label does not establish interchangeability or compliance of the completed lift.
Prepare procurement information
A useful request for quotation should contain the machine nameplate, the site description, quantities, delivery location and the scope expected from IDEEI. Include traction motor nameplate and original parameter backup. Ask the supplier to itemize the main unit, control accessories, sensors, interface boards, protective devices, cabinet and optional spare parts. If an item will be purchased locally, identify the exact specification and connection responsibility. Request the applicable datasheet, user manual and wiring diagram for the proposed variant. Confirm the agreed commercial term and which party handles freight, import clearance, taxes and inland delivery. This makes quotations from several suppliers genuinely comparable.
Commissioning and maintenance records
Before energizing the equipment, the installer should check insulation, polarity where relevant, protective earth, terminal assignments and mechanical readiness. Save a parameter backup and a dated commissioning record containing the model and serial number. Test each intended protective response with the machine under controlled conditions; record the results instead of assuming the default settings are adequate. Establish a routine for cleaning filters and enclosures, checking terminal condition and reviewing fault history. A remote supplier can troubleshoot much faster when the operator can supply measured currents, photographs and alarm codes. Only qualified personnel should modify safety-related wiring or operate the system during tests.
Questions buyers should settle before ordering
Can the selected rating run the motor? Only a check of motor current, duty and the exact model can answer that.
Does the quotation include a complete installed system? Only if the written scope lists the additional components and work.
Will the proposed configuration perform at the site? That depends on the measured conditions and commissioning results, so use a documented acceptance test.
Can the buyer reuse existing equipment? The interfaces and safety design must be checked individually.
Ask IDEEI for a written compatibility review based on the site documents; do not treat this reference scenario as proof that a project has already been delivered.
Commercial and Delivery Requirements
The buyer should send photographs of the motor, encoder, old inverter and control cabinet, along with the available wiring diagram.
The quotation should identify the inverter, encoder interface, required accessories, spare parts and technical documentation.
If several replacement units are required, the buyer can provide a model-by-model schedule for consolidated shipping.
Contact IDEEI with the original drive and motor details for a replacement compatibility assessment.
