High-altitude installations require additional attention to inverter cooling and electrical operating limits. A 15kW motor does not automatically mean that a nominally rated 15kW inverter will be suitable at every elevation.
The final selection must follow the inverter manufacturer’s altitude and temperature specifications.
Reference Scenario: Agricultural Water Supply

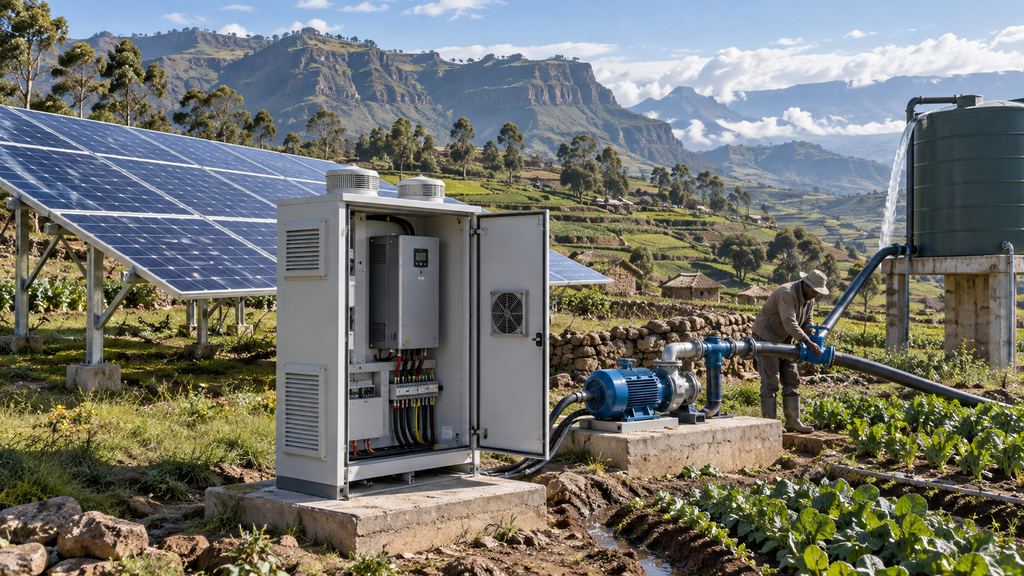

Consider an agricultural water supply project in the Ethiopian highlands with a three-phase, 380V, 15kW pump.
The site uses a solar array and an electrical enclosure near the pumping station.
The project engineer needs to confirm whether the inverter can deliver the required motor current under the actual environmental conditions.
Technical Selection Process
The IDEEI QB100-PV 15kW model is a possible starting point for electrical evaluation.
However, the engineer must verify the installation altitude, ambient temperature, cabinet ventilation and applicable derating requirements.
If the permitted inverter output current becomes lower than the motor’s required current, a different drive rating or installation arrangement must be evaluated.
The same project also requires the usual pumping checks: total dynamic head, flow, PV voltage range and motor compatibility.
An oversized inverter alone cannot correct an undersized pump or incorrectly designed PV array.
Start with the operating duty
For a 15 kW high-altitude pumping site in Ethiopia, write down what the equipment must accomplish over a complete working day before choosing a power rating. Record dynamic water level, total head and altitude of the installation. A single motor kilowatt figure does not establish duty, performance or the required controls. Ask the owner and site engineer to distinguish measured values from estimates. When an existing machine is being replaced, keep photographs of the nameplate, the previous controller and the wiring diagram. If the system is new, obtain the relevant mechanical or hydraulic design. These inputs allow a supplier to identify assumptions clearly and prevent a quotation from quietly treating an unknown requirement as a confirmed specification.
Electrical compatibility is a model-level decision
Confirm the motor’s rated voltage, current, frequency, speed and connection, then compare each item with the proposed solar pump inverter model. Check cooling capability and current derating at the stated elevation and ambient temperature. The exact model number and its manual matter more than a family name: options can differ in input range, output current, terminals, protection class and accessories. The installation engineer should also document supply quality, earthing, available protection and cable lengths. A motor and drive can display the same nominal kilowatt rating while still being electrically incompatible. Do not approve procurement until the supplier has checked the nameplate against the particular unit offered and listed any required external components.
Build a measurable acceptance test
Turn the project’s objectives into testable acceptance criteria. For a 15 kW high-altitude pumping site in Ethiopia, the test should cover normal startup, steady operation, controlled stopping and the consequences of losing a power source or a control signal. Record current, operating frequency, relevant pressure or speed, and any fault indications during a supervised trial. Agree who measures these values and where they will be recorded. A successful bench test at the supplier does not prove performance at the final site because cable runs, ambient conditions and the connected machine differ. A first-unit trial can reveal interface issues before the buyer orders a larger batch.
Plan the controls as a complete system
The control scope needs an explicit wiring and responsibility diagram. Address motor cable length and dry-run protection. A drive may expose inputs and software functions, but that does not mean sensors, relays, cabinets or external safety devices are included in the quoted unit price. Agree on the normal operating sequence, each stop condition, reset rules and the response to a broken sensor wire. Decide whether an alarm needs a local indicator or remote notification. Safety devices required by the complete machine or installation should be designed and validated independently by qualified personnel. Documenting these interfaces before shipment reduces costly rewiring on site.
Account for the installation environment
Ask for the installation location, altitude, maximum ambient temperature, dust or moisture exposure, and available ventilation space. Enclosure protection belongs to the exact assembly being sold; an indoor inverter is not automatically suitable for a wet outdoor wall. A sealed cabinet may require a thermal review because a running drive dissipates heat. Cable entries, grounding, surge protection and maintenance access should be drawn on the installation plan. If the site is exposed to salt, flooding or direct sun, specify those hazards rather than relying on a generic description such as outdoor use. Confirm who supplies the cabinet and who certifies its finished protection rating.
Check energy and power-source assumptions
If photovoltaic input is proposed, request module Voc, Vmp, Isc, Imp, power rating and temperature coefficients, as well as the proposed series and parallel arrangement. Check cold-weather open-circuit voltage and hot-module working voltage against the exact drive limits. Compare expected production with the operating hours and demand in the site plan, allowing for shading, wiring losses and seasonal changes. If utility or generator backup is required, obtain its voltage, frequency and capacity and use only a connection method approved for the selected model. Do not infer that two sources can be energized simultaneously because marketing material describes the family as hybrid.
Prepare procurement information
A useful request for quotation should contain the machine nameplate, the site description, quantities, delivery location and the scope expected from IDEEI. Include dynamic water level, total head and altitude of the installation. Ask the supplier to itemize the main unit, control accessories, sensors, interface boards, protective devices, cabinet and optional spare parts. If an item will be purchased locally, identify the exact specification and connection responsibility. Request the applicable datasheet, user manual and wiring diagram for the proposed variant. Confirm the agreed commercial term and which party handles freight, import clearance, taxes and inland delivery. This makes quotations from several suppliers genuinely comparable.
Commissioning and maintenance records
Before energizing the equipment, the installer should check insulation, polarity where relevant, protective earth, terminal assignments and mechanical readiness. Save a parameter backup and a dated commissioning record containing the model and serial number. Test each intended protective response with the machine under controlled conditions; record the results instead of assuming the default settings are adequate. Establish a routine for cleaning filters and enclosures, checking terminal condition and reviewing fault history. A remote supplier can troubleshoot much faster when the operator can supply measured currents, photographs and alarm codes. Only qualified personnel should modify safety-related wiring or operate the system during tests.
Questions buyers should settle before ordering
Can the selected rating run the motor? Only a check of motor current, duty and the exact model can answer that.
Does the quotation include a complete installed system? Only if the written scope lists the additional components and work.
Will the proposed configuration perform at the site? That depends on the measured conditions and commissioning results, so use a documented acceptance test.
Can the buyer reuse existing equipment? The interfaces and safety design must be checked individually.
Ask IDEEI for a written compatibility review based on the site documents; do not treat this reference scenario as proof that a project has already been delivered.
Communicating with the Supplier
Send the motor nameplate, site altitude, maximum ambient temperature, cabinet drawings, PV specifications and cable length.
The quotation should identify the selected drive, any cabinet or cooling requirements, electrical accessories and shipping destination.
Do not approve the final equipment schedule until the manufacturer’s operating limits have been checked for the selected model.
Submit your site elevation and motor information to IDEEI for a high-altitude selection review.
