A hospital water supply system needs a reliable overall design rather than relying on a single inverter. Solar pumping can contribute to filling a storage tank, but the required water reserve, backup supply and operational safety must be evaluated at the system level.
Reference Scenario: Hospital Water Storage
Consider a hospital in Rwanda with an existing three-phase, 380V, 22kW water pump.
The hospital wants to use solar energy to supply a storage reservoir while maintaining its existing water supply arrangements.
The engineering team must determine whether the pump can meet the required daily water demand under the expected solar operating conditions.
Proposed System Architecture
The IDEEI QB100-PV 22kW can be considered for the pump after checking the motor current and electrical characteristics.

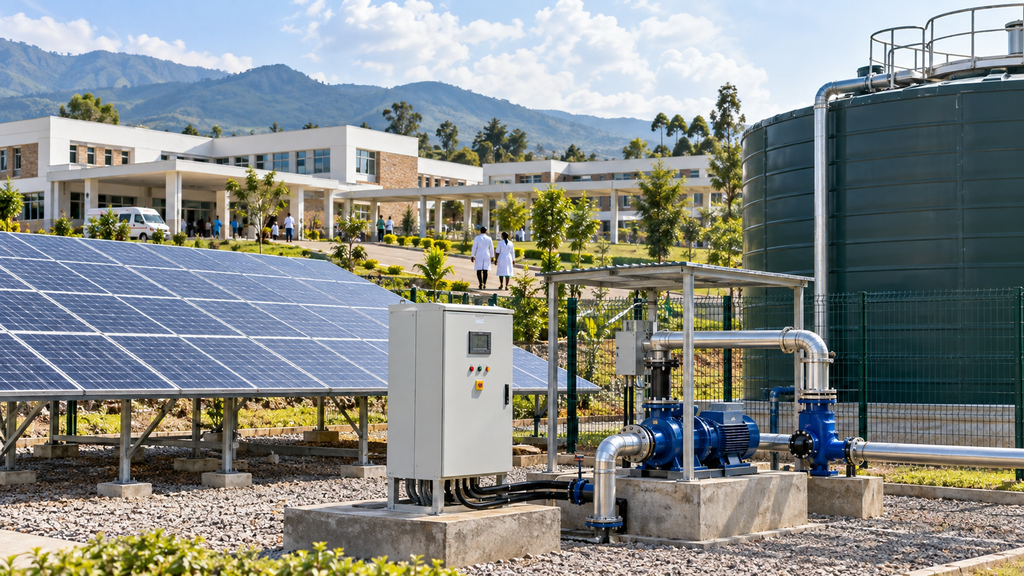

The system may include a solar array, inverter, pump, water-level monitoring and a storage tank.
The water-level control arrangement should stop pumping when the tank is full and protect the pump when the source cannot provide sufficient water.
An independent backup water and power arrangement should be evaluated for critical hospital requirements.
The inverter itself must not be described as guaranteeing uninterrupted hospital water supply.
Start with the operating duty
For a 22 kW hospital water storage system in Rwanda, write down what the equipment must accomplish over a complete working day before choosing a power rating. Record critical daily water demand and autonomy of the clean-water tanks. A single motor kilowatt figure does not establish duty, performance or the required controls. Ask the owner and site engineer to distinguish measured values from estimates. When an existing machine is being replaced, keep photographs of the nameplate, the previous controller and the wiring diagram. If the system is new, obtain the relevant mechanical or hydraulic design. These inputs allow a supplier to identify assumptions clearly and prevent a quotation from quietly treating an unknown requirement as a confirmed specification.
Electrical compatibility is a model-level decision
Confirm the motor’s rated voltage, current, frequency, speed and connection, then compare each item with the proposed solar pump inverter model. Check backup power architecture, alarm routing and continuity during maintenance. The exact model number and its manual matter more than a family name: options can differ in input range, output current, terminals, protection class and accessories. The installation engineer should also document supply quality, earthing, available protection and cable lengths. A motor and drive can display the same nominal kilowatt rating while still being electrically incompatible. Do not approve procurement until the supplier has checked the nameplate against the particular unit offered and listed any required external components.
Build a measurable acceptance test
Turn the project’s objectives into testable acceptance criteria. For a 22 kW hospital water storage system in Rwanda, the test should cover normal startup, steady operation, controlled stopping and the consequences of losing a power source or a control signal. Record current, operating frequency, relevant pressure or speed, and any fault indications during a supervised trial. Agree who measures these values and where they will be recorded. A successful bench test at the supplier does not prove performance at the final site because cable runs, ambient conditions and the connected machine differ. A first-unit trial can reveal interface issues before the buyer orders a larger batch.
Plan the controls as a complete system
The control scope needs an explicit wiring and responsibility diagram. Address independent level alarms and sanitary water controls. A drive may expose inputs and software functions, but that does not mean sensors, relays, cabinets or external safety devices are included in the quoted unit price. Agree on the normal operating sequence, each stop condition, reset rules and the response to a broken sensor wire. Decide whether an alarm needs a local indicator or remote notification. Safety devices required by the complete machine or installation should be designed and validated independently by qualified personnel. Documenting these interfaces before shipment reduces costly rewiring on site.
Account for the installation environment
Ask for the installation location, altitude, maximum ambient temperature, dust or moisture exposure, and available ventilation space. Enclosure protection belongs to the exact assembly being sold; an indoor inverter is not automatically suitable for a wet outdoor wall. A sealed cabinet may require a thermal review because a running drive dissipates heat. Cable entries, grounding, surge protection and maintenance access should be drawn on the installation plan. If the site is exposed to salt, flooding or direct sun, specify those hazards rather than relying on a generic description such as outdoor use. Confirm who supplies the cabinet and who certifies its finished protection rating.
Check energy and power-source assumptions
If photovoltaic input is proposed, request module Voc, Vmp, Isc, Imp, power rating and temperature coefficients, as well as the proposed series and parallel arrangement. Check cold-weather open-circuit voltage and hot-module working voltage against the exact drive limits. Compare expected production with the operating hours and demand in the site plan, allowing for shading, wiring losses and seasonal changes. If utility or generator backup is required, obtain its voltage, frequency and capacity and use only a connection method approved for the selected model. Do not infer that two sources can be energized simultaneously because marketing material describes the family as hybrid.
Prepare procurement information
A useful request for quotation should contain the machine nameplate, the site description, quantities, delivery location and the scope expected from IDEEI. Include critical daily water demand and autonomy of the clean-water tanks. Ask the supplier to itemize the main unit, control accessories, sensors, interface boards, protective devices, cabinet and optional spare parts. If an item will be purchased locally, identify the exact specification and connection responsibility. Request the applicable datasheet, user manual and wiring diagram for the proposed variant. Confirm the agreed commercial term and which party handles freight, import clearance, taxes and inland delivery. This makes quotations from several suppliers genuinely comparable.
Commissioning and maintenance records
Before energizing the equipment, the installer should check insulation, polarity where relevant, protective earth, terminal assignments and mechanical readiness. Save a parameter backup and a dated commissioning record containing the model and serial number. Test each intended protective response with the machine under controlled conditions; record the results instead of assuming the default settings are adequate. Establish a routine for cleaning filters and enclosures, checking terminal condition and reviewing fault history. A remote supplier can troubleshoot much faster when the operator can supply measured currents, photographs and alarm codes. Only qualified personnel should modify safety-related wiring or operate the system during tests.
Questions buyers should settle before ordering
Can the selected rating run the motor? Only a check of motor current, duty and the exact model can answer that.
Does the quotation include a complete installed system? Only if the written scope lists the additional components and work.
Will the proposed configuration perform at the site? That depends on the measured conditions and commissioning results, so use a documented acceptance test.
Can the buyer reuse existing equipment? The interfaces and safety design must be checked individually.
Ask IDEEI for a written compatibility review based on the site documents; do not treat this reference scenario as proof that a project has already been delivered.
Engineering Review and Procurement
Before quotation, the customer should provide the pump curve, daily water demand, tank capacity, motor nameplate, PV specifications and existing backup arrangements.
The technical offer should distinguish standard drive functions from external sensors, switching equipment and other project-dependent components.
The delivery plan should include the required documents, shipping terms and commissioning responsibilities.
Send your hospital pumping requirements to IDEEI for a technical configuration review.
